Plotting datetime in matplotlib

# initialization
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

Figure with datetime axis

Very often we’ll want to plot data for which the horizontal axis corresponds to datetime. Luckily, matplotlib recognizes pandas datetime format and can plot the datetime axis correctly. Let’s again take the CalCOFI data as an example:

# loading the CalCOFI data
CalCOFI = pd.read_csv("data/CalCOFI_subset.csv", parse_dates = ["Datetime"])
display(CalCOFI)

	Cast_Count	Station_ID	Datetime	Depth_m	T_degC	Salinity	SigmaTheta
0	992	090.0 070.0	1950-02-06 19:54:00	0	14.040	33.1700	24.76600
1	992	090.0 070.0	1950-02-06 19:54:00	10	13.950	33.2100	24.81500
2	992	090.0 070.0	1950-02-06 19:54:00	20	13.900	33.2100	24.82600
3	992	090.0 070.0	1950-02-06 19:54:00	23	13.880	33.2100	24.83000
4	992	090.0 070.0	1950-02-06 19:54:00	30	13.810	33.2180	24.85100
...	...	...	...	...	...	...	...
10052	35578	090.0 070.0	2021-01-21 13:36:00	300	7.692	34.1712	26.67697
10053	35578	090.0 070.0	2021-01-21 13:36:00	381	7.144	34.2443	26.81386
10054	35578	090.0 070.0	2021-01-21 13:36:00	400	7.031	34.2746	26.85372
10055	35578	090.0 070.0	2021-01-21 13:36:00	500	6.293	34.3126	26.98372
10056	35578	090.0 070.0	2021-01-21 13:36:00	515	6.155	34.2903	26.98398

10057 rows × 7 columns

Let’s say we’re interested in data at 10 m deep:

CalCOFI_10 = CalCOFI.loc[CalCOFI["Depth_m"] == 10]

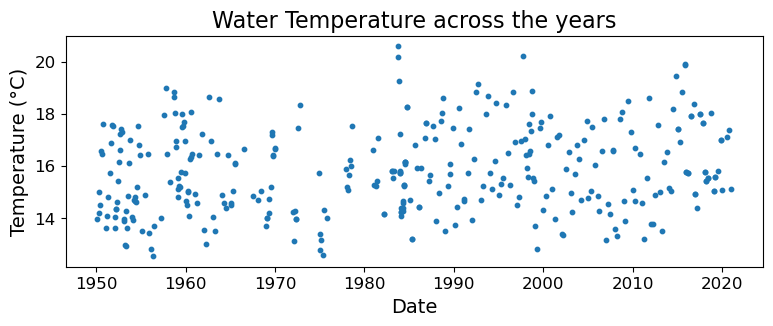

We can plot how water temperature varies with time as follows:

# date spans decades, so pick a "long" x-axis
fig = plt.figure(figsize=(9, 3))
ax = fig.add_subplot()

# Note the use of .value to extract the underlying data when plotting
ax.scatter(CalCOFI_10["Datetime"].values, CalCOFI_10["T_degC"].values, s=10)

ax.set_xlabel("Date", fontsize=14)
ax.set_ylabel("Temperature (°C)", fontsize=14)
ax.set_title("Water Temperature across the years", fontsize=16)
ax.tick_params(labelsize=12)

plt.show(fig)

Now let’s suppose we want to focus on the year 1959. First we subset the data:

CalCOFI_10_1959 = CalCOFI_10.loc[
    (CalCOFI_10["Datetime"] >= pd.to_datetime("1959-01-01")) &
    (CalCOFI_10["Datetime"] < pd.to_datetime("1960-01-01"))
]

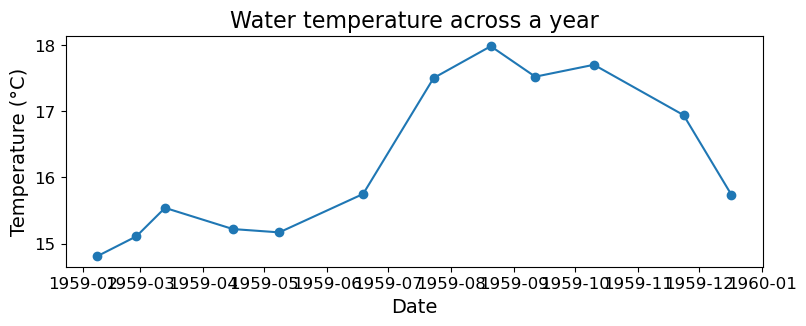

Now we plot the subsetted data. Notice where and how matplotlib places the ticks on the x- (temporal) axis:

# date spans decades, so pick a "long" x-axis
fig = plt.figure(figsize=(9, 3))
ax = fig.add_subplot()

# Note the use of .value to extract the underlying data when plotting
ax.plot(
    CalCOFI_10_1959["Datetime"].values,
    CalCOFI_10_1959["T_degC"].values,
    marker="o"
)

ax.set_xlabel("Date", fontsize=14)
ax.set_ylabel("Temperature (°C)", fontsize=14)
ax.set_title("Water temperature across a year", fontsize=16)
ax.tick_params(labelsize=12)

plt.show(fig)

Setting ticks and tick labels on datetime axis

While we can just plot the datetime as-is, sometimes we want better control of where the ticks are placed and how they are formatted. Such functionalities are provided by the matplotlib.dates submodule, which we import below:

import matplotlib.dates as mdates

The documentations of the submodule can be found here: https://matplotlib.org/stable/api/dates_api.html

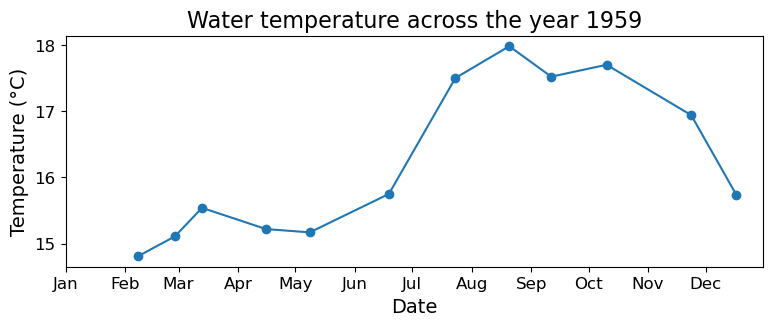

Instead of using ax.set_xticks() and ax.set_yticks() to set the ticks and labels, we use ax.xaxis.set_major_locator() to specify the location of the ticks and ax.xasis.set_major_formatter() to specify the formatting of the ticks. It is easier to see how these work through an example, so here it is:

fig = plt.figure(figsize=(9, 3))
ax = fig.add_subplot()

ax.plot(
    CalCOFI_10_1959["Datetime"].values,
    CalCOFI_10_1959["T_degC"].values,
    marker="o"
)

ax.set_xlim(pd.to_datetime("1959-01-01"), pd.to_datetime("1959-12-31"))
ax.xaxis.set_major_locator(mdates.MonthLocator())
ax.xaxis.set_major_formatter(mdates.DateFormatter("%b"))

ax.set_xlabel("Date", fontsize=14)
ax.set_ylabel("Temperature (°C)", fontsize=14)
ax.set_title("Water temperature across the year 1959", fontsize=16)
ax.tick_params(labelsize=12)

plt.show(fig)

We use mdates.MonthLocator() to tell matplotlib that we want one tick every month. And we use mdates.DateFormatter("%b") to tell matplotlib that each tick label should display the short name of the month, and nothing else. Note that mdates.DateFormatter() again uses the datetime format code https://docs.python.org/3/library/datetime.html#strftime-and-strptime-behavior to specify the formatting of tick labels.

matplotlib.mdates has a few more locators available in addition to MonthLocator(). For example:

• DayLocator(): ticks placed on day-level intervals

• MonthLocator(): ticks placed on month-level intervals

• YearLocator(): ticks placed on year-level intervals

• HourLocator(): ticks placed on hour-level intervals

• MinuteLocator(): ticks placed on minute-level intervals

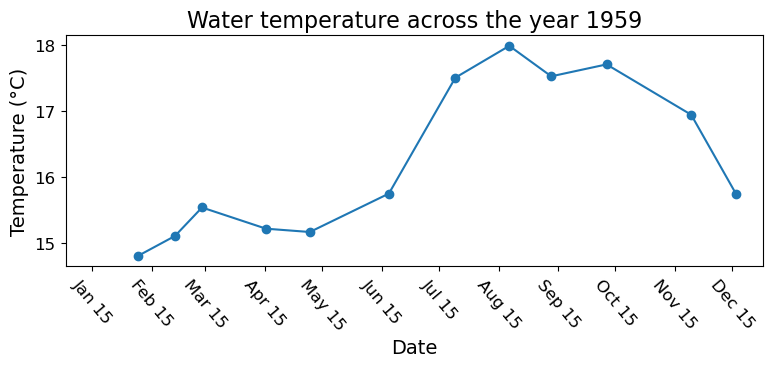

Note that these locators have optional arguments. For example, to display a tick every 15th of the month, we can do:

fig = plt.figure(figsize=(9, 3))
ax = fig.add_subplot()

ax.plot(
    CalCOFI_10_1959["Datetime"].values,
    CalCOFI_10_1959["T_degC"].values,
    marker="o"
)

ax.set_xlim(pd.to_datetime("1959-01-01"), pd.to_datetime("1959-12-31"))
ax.xaxis.set_major_locator(mdates.DayLocator([15]))
ax.xaxis.set_major_formatter(mdates.DateFormatter("%b %d"))
ax.tick_params("x", labelrotation=-50)

ax.set_xlabel("Date", fontsize=14)
ax.set_ylabel("Temperature (°C)", fontsize=14)
ax.set_title("Water temperature across the year 1959", fontsize=16)
ax.tick_params(labelsize=12)

plt.show(fig)

Note also that we handled long tick labels by rotating them, which is achieved using the ax.tick_params("x", labelrotation=-50) line.
